Features:
Integrated with multiple functions, it can be used as ZigBee gateway and variety of control panels such as light control panel, switch panel, visual doorbell panel, etc, to achieve a user-friendly interactive experience.
Connect multiple scenes, which syncs with mobile phone, replaces the role of scene switch, combined with voice control, to be your intimate home keeper.
With the 6-inch LCD screen, it dynamically presents the date and time, to intimately broadcast the daily weather on home page as your life assistant. You can also add common scenarios and devices to the home page for one-click operation.
Specifications:
- CPU: PX30 Quad Core Cortex A35
- RAM: 2GB, ROM: 8GB
- Screen: 6 inch Main Screen (720*1440 – Multi-touch) + Knob Screen (240*204 – Multi touch)
- Ethernet: 10M/ 100M Adaptive
- RS485: Half-Duplex 3.81mm terminals
- WiFi: 802.11b/g/n 150Mbps
- Zigbee: 802.15.4 PHY/MAC Zigbee
- Relays: Built in 2 relays (200W each) which can control 2 switches for the room lights
- Music Play: Built in 1W Mono speaker
- Light sensor: Automatically adjust the screen brightness according to environment

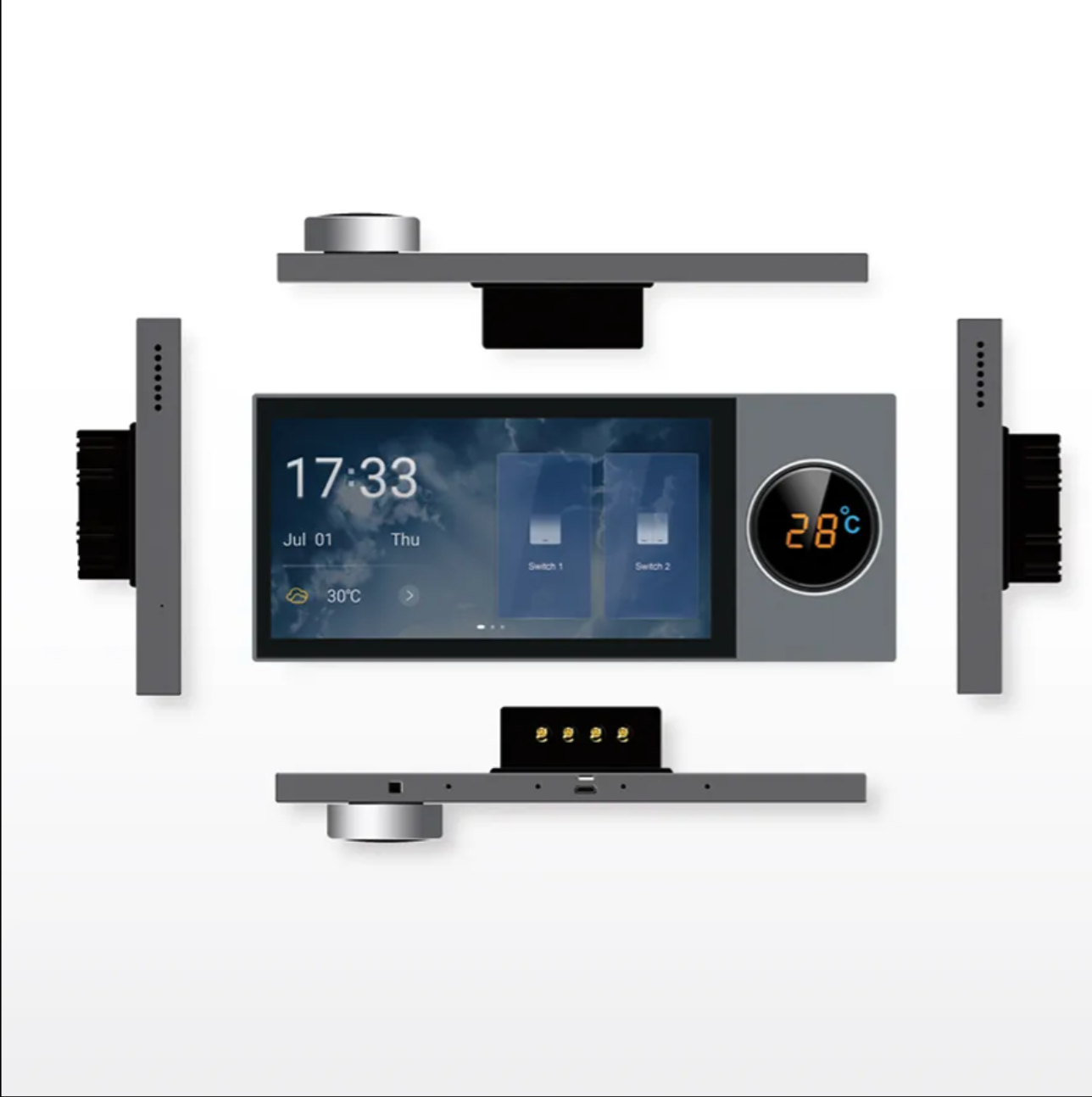

- Product dimension: 205.6×85.6x52mm (with the base); 205.6×85.6x10mm (without the base | Outside the wall); 60.9×62.9×24.6mm (back base dimension); 60mm (bolt hole spacing)
- Nt Wt: 328g
