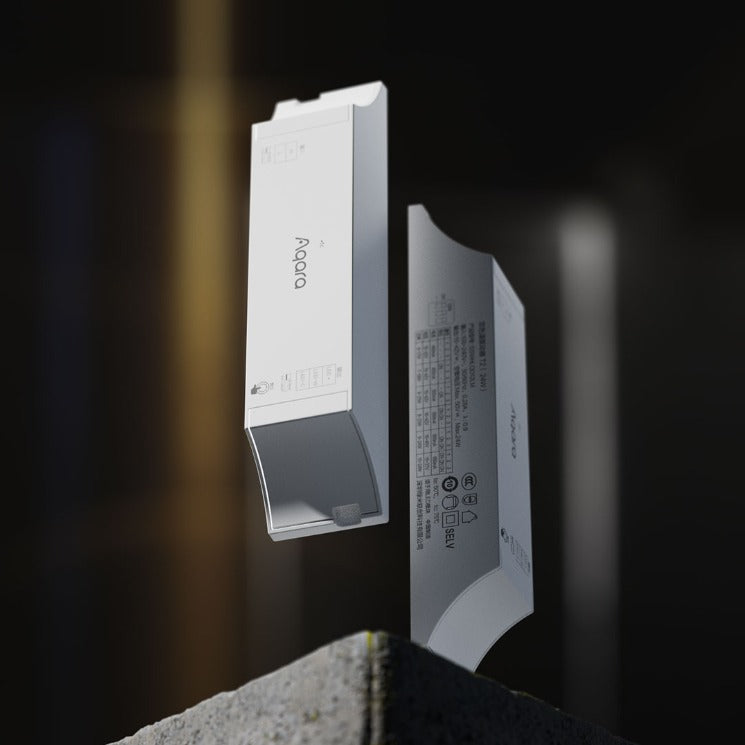

Aqara Dual Color Temperature Driver T2

Features

• Enhanced Dimming Control: Adjust brightness with a configurable dimming curve and gradient settings for smooth light transitions.
• Flexible Color Temperature: Customize the range to create the perfect lighting atmosphere.
• Seamless Smart Home Integration: Works with major platforms like Apple HomeKit, Google Assistant, and Amazon Alexa.
• Energy-Efficient Design: Built to save power while delivering high-quality lighting.
• Safe and Reliable: Includes overload protection, reverse connection settings, and temperature safeguards.
• Wide Compatibility: Supports LED, halogen, and incandescent lighting fixtures.

Specifications

• Model: SSWHLQD11LM (15W) and SSWHLQD12LM (24W)
• Input: 100-240V~50/60Hz, 0.17A
• Output: 24VDC, 0-5A
• Output Power: Max. 15W or 24W
• Protocol: Zigbee
• Operating Temperature: -20℃ to 50℃
• Dimensions: 170 × 40 × 30 mm
• Standards: GB/T 17743-2021, GB19510.1-2009, GB 19501.14-2009
